 LED
/ LCD WALL MOUNT BRACKET |
|
|
|
| |
|
FEATURE
-
Safety
screw was used to avoid the movement of TVs after
you hang it on the wall bracket
-
Slim
designing only 22 mm when close to wall
-
Side
view for the mount on the wall
-
Square
holes in the wall plate for in-wall cable routing
|
| |
|

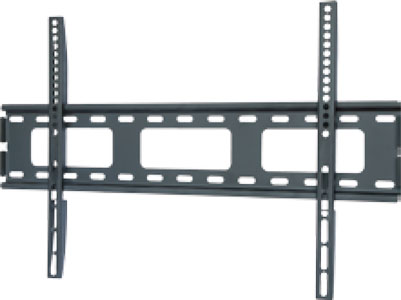

MODEL |
PLB 132 L
|
|
SPECIFICATIONS
|
|
Walll Plate |
650mm x 140 mm |
| Max
Mount |
50 ~620 mm x 420
mm |
|
Suit Tv Size |
40 ~ 65 inch |
| Capacity |
132 lbs / 60 Kgs |
|
VESA |
600 mm x 400 mm |
| GAP |
22 mm |
|
Packing
|
670 mm x 148mm x 33
mm |
| Net
Weight |
1.9 Kg |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
