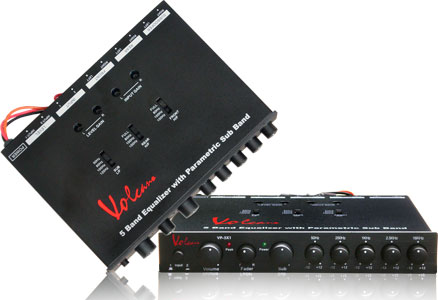

 PRE-Amplifier |
|
|
 |
|
5 BAND EQUALIZER
WITH PARAMETRIC SUB BAND |
| |
|
FEATURE
- Preamp line driver
- Front/Rear OUtputs with
Fader Control
- Subwoofer Crossover (50, 80
, 100, 120 Hz)
- Separate Subwwofer
Frequency and Level Controls
- Level input 1,2 input
selector
- Center-Detened Boost/Cut
Controls for Each Band
- Gold-plated RCA input and
output connectors
- Independent L & R input
Gain Adjustments
- Signal Distortion Indicate
- Front Channel High-pass
Frequency Selector
- Rear Channel High-pass
Frequency Selector
- Night illumination design
|
| |
|
Model |
VP5X1 |
|
SPECIFICATIONS
|
|
Signal~ to ~
Noise Ratio |
90 dB |
| Total Harmonic
Distortion |
0.03% (1 KHz,1VRMS) |
Boost/Cut
Range
|
12 dB
|
Equalizer Center Frequencies |
| |
Band 1 |
50 Hz
|
| |
Band 2 |
250 Hz |
| |
Band 3 |
1 KHz |
| |
Band 4 |
2.5 KHz |
| |
Band 5 |
16 KHz |
| Maximum Input
Voltage (Flat) |
2.0 VRMS |
|
Maximum Output |
9.5 VRMS |
| Frequency
Response |
20 ~ 20
KHz |
|
Input
Impedance |
47 K Ω |
| Output
Impedance |
10 K Ω |
|
Supply Voltage |
11 ~ 15
VDC |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
