 PRE-Amplifier |
|
|
 |
|
3 BAND EQUALIZER
WITH KARAOKE FUNCTION |
| |
|
FEATURE
- Adjustable Input Sensitivity
- Ultra wide bandwidth
- Blue back illuminator
- Mic output level control 0 dB
+ 16 dB
- 12 dB / Octave front & rear
output
- Subwoofer output level control
0 dB to + 16 dB
- Preamp output level 6 VRMS
- Gold plated RCA connectors
|
| |
|

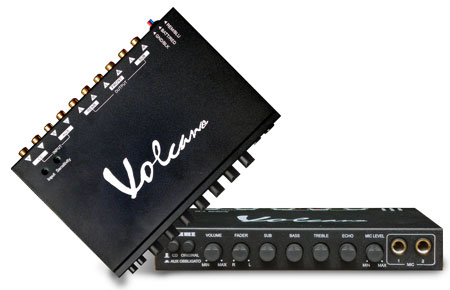

Model |
VEQ 50K MKII |
|
SPECIFICATIONS
|
|
Pre-Amp Input Level |
120mV -4VRMS |
|
Input Impedance |
15 KΩ |
|
Frequency Response |
10 Hz ~ 30KHz |
|
T.H.D |
0.05% |
|
Signal To Noise Ratio |
92 dB |
|
Channel Separation |
80 dB |
|
Maximum Output |
6 V RMS |
|
Maximum Mic Output |
6.5 V RMS |
|
Slope |
12 dB/ octave |
|
Power Supply |
10V~14.5VDC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
