 PRE-Amplifier |
|
|
 |
4 Band Graphic Equalizer with
subwoofer output and CD/Radio selector switch |
| |
|
FEATURE
- Using bipolar power supply
- Master volume control
- Input sensitivity control
- Subwoofer output and
frequency selectors
- CD/RADIO Input selectors
- Auto sensing
|
| |
|

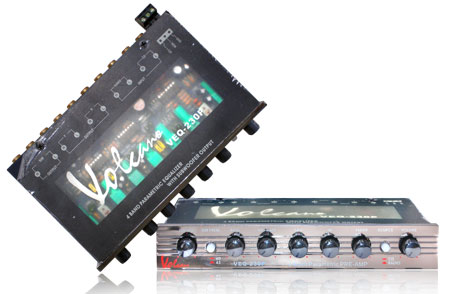

Model |
VEQ 230P |
|
SPECIFICATIONS
|
|
Power Supply |
11~15V DC Neg. Ground |
| Max. output voltage |
7 V RMS |
| PRE GRAPHIC FREQUENCY |
40 Hz, 200 Hz, 2 KHz, 20 KHz |
| Equalization Range |
± 12 dB |
| Subwoofer Frequency |
43 / 60 Hz |
| Input Impedance |
15 K Ω |
| S/N Ratio |
80 dB |
| T.H.D |
0.05 % |
| Channel separation |
70 dB |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
