 AMPLIFIER |
|
|
 |
|
2 / 1 Channel
Amplifier |
| |
|
FEATURE
- Power MOSFETS
- Pules Width Modulated Power
Supply
- Audio Stage Design
- Protection Circuitry
- MIL Spec P.C. board
- Built in crossover & BASS
Booster
|
| |
|

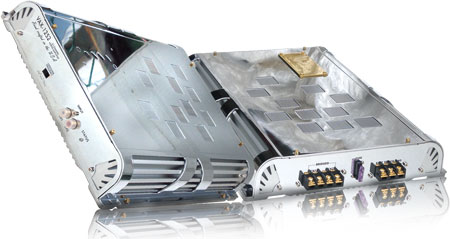

Model |
VAX 1252 |
|
SPECIFICATIONS
|
|
Power Output 4 Ω |
125 W x 2 |
| Power Output 2 Ω |
187 W x 2 |
| Bridged Output 8 Ω |
250 W x 1 |
| Bridged Output 4 Ω |
375 W x 1 |
| THD (80 KHz LPF) |
< 0.05 % |
| Frequency Response |
5 Hz ~ 50 KHz |
| S/N Ratio (IHF-A) |
> 95 dB |
| Stereo Separation |
> 55 dB |
| Input Sensitivity |
0.1 V ~ 2 V |
| Damping Factor |
> 150 |
| Input Impedance |
20 K |
| Crossover |
50 / 80 / 120 Hz LPF |
| Idle Current |
0.8 A |
| Remote Voltage |
7 V ~ 14.4 V |
| Bass |
0—6—12 dB |
| Phase Switch |
0°, 180° |
| Fuse Rating |
35 A |
|
| |
