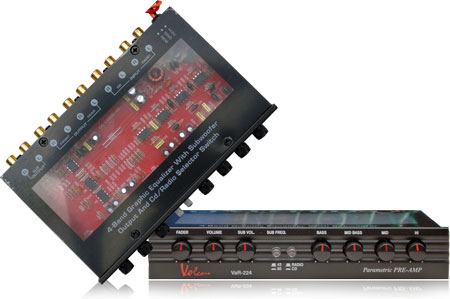

 PRE-Amplifier |
|
|
|
4 Band Graphic Equalizer With
Subwoofer Output and CD/RADIO Selector SWITCH |
| |
|
FEATURE
- Use Bipolar power supply
- Master Volume control
- Input Sensitivity control
- Subwoofer Output and Frequency
Selectors
- CD/AUX input selectors
- Two color change of select
switch
- Auto Sensing
|
| |
|
Model |
VAR 224 |
|
SPECIFICATIONS
|
|
4-Band
Parametric Sub Band |
40 Hz, 200 Hz, 2 KHz, 20 KHz |
| Input
Impedance |
15 K Ω |
|
Signal Noise
Ratio |
80 db REF. 1 Volt Input |
| Channel
Separation |
70 db |
|
T. H. D.
|
0.05 % |
| Power Supply
|
11 – 15 Volts DC Neg. Ground
|
|
Max Output
Voltage |
7 volts RMS |
| Subwoofer
Frequency |
43 / 60Hz |
|
Equalization
Range |
+12dB |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
