 AMPLIFIER |
|
|
 |
| |
|
4 / 3 / 2 CHANNEL
AMPLIFIER |
|
FEATURE
-
Full frequency
response with low distortion and exceptional
-
Signal-to-noise
performance.
-
Advanced
circuitry design features bridgeable outputs for use in a
variety of applications
-
Independent
electronic crossovers, each with a 12 dB per octave slope and
full adjustment range from 50 Hz ~ 250KHz, to aid in audio
system design.
-
Bass boost
circuit to reinforce low frequency signals that may be lost due
to subwoofer box design.
-
Adjustable
input level controls with ground loop isolation, accepting a
wide range of input signals.
-
Remote turn-on
with "soft start" muting to prevent turn-on "thump".
-
Protection
circuits are for overheating and speaker shorts.
-
2-ohm load is
capable to drive a variety of speaker systems.
-
Gold-plated
input/output connectors and an external automotive-type fuse.
-
Aluminum heat
sink for efficient heat dissipation.
-
Low profile,
compact size to accommodate space limitation.
|
| |
|

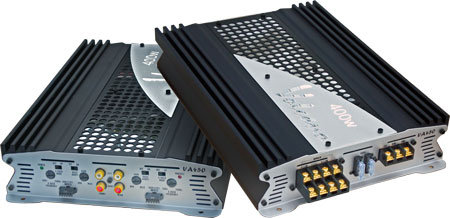

Model |
VA 450
|
|
SPECIFICATIONS
|
|
Output power |
|
| Stereo @ 4Ω
(0.1%) 1KHz |
4 x 57 W |
|
Stereo @ 2Ω
(0.1%) 1 KHz |
4 x 81 W |
| Bridged @ 4 Ω
(0.1%) |
2 x 160 W |
|
Frequency
Response -0.3 dB |
10 Hz ~ 20 KHz |
| Hi-pass
frequency |
65 Hz ~ 350 KHz |
|
Low-pass
frequency |
60 Hz ~ 400 KHz |
| S/N Ratio (A
wtg.) |
> 105 dB |
|
Separation @ 1
KHz 2.5V in |
> 65 dB |
| Input
Sensitivity (50W out) |
160mV ~ 5.2 V |
|
High level
input sensitivity |
320 mV ~ 10.4 V |
| Bass Boost (50
Hz) |
10 dB @ 50 Hz |
|
Input
Impedance |
40 K Ω Low Level
(RCA) |
|
Max Peak
Current |
70 A @ 320 W |
| Idle Current |
0.82 A |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
