 Amplifier |
|
2 CHANNEL AMPLIFIER |
| |
|
FEATURE
- Output stages utilize
high-current MOSFET devices
- High speed , audio-grade
components in all low-level stages
- Active constant current bias
tracking circuit
- Gold-plated RCA inputs and
connectors
- Wide range of sensitivity
accepts signal from any head unit
- High-level speaker inputs (2
channel models only)
- 24 dB/octave lowpass crossover
- TRUE Line Output
- Auto Bridge feature
- Short circuit protection
|
| |
|

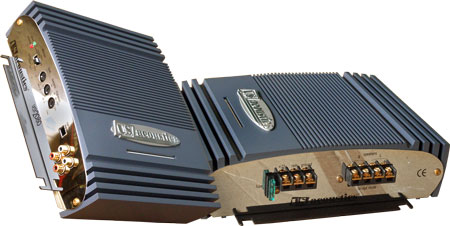

Model |
USX
2080 |
|
SPECIFICATIONS
|
RMS,
per channel @ 4Ohms
@12.9v input |
80Wx2CH |
RMS,
per channel @ 2Ohms
@12.9v input |
140Wx2Ch |
|
RMS,
Bridged Mono @4Ohms
@12.9v input |
280Wx1CH |
|
INPUT
SENSITIVITY, HI LEVEL |
220mV-17.6V |
|
INPUT SENSITIVITY, LOW LEVEL |
110mV-8.8V |
|
Frequency
Response |
10Hz-30KHz,
-0.5dB |
|
Total
Harmonic Distortion |
Less
than 0.01% |
|
S/N
Ratio |
101dB |
|
Channel
Separation |
86dB |
|
Damping
Factor @ 20Hz |
95 |
|
Crossover
Range (High Pass) |
65Hz-4.5KHz |
|
Crossover
Range (Low Pass, 24db) |
40-460Hz |
|
High
Level Input |
Yes |
|
Protection
Reverse Polarity |
Yes |
|
Thermal |
Yes |
|
Short
Circuit |
Yes |
|
Fuse
Rating |
30A |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
