 PRE-Amplifier |
|
|
 |
| |
|
5 Band Graphic
Equalizer |
|
FEATURE
- Five equalization bands (@
45 Hz, 100 Hz, 700 Hz,2 KHz, 15KHz)
- Low-pass crossover filter
with selectable frequency control 60 Hz or 90 Hz
- Three stereo RCA outputs to
drive front , rear and subwoofer audio systems
- Auxiliary stereo RCA inputs
with adjustable gain control
- Separate controls for
master system volume, subwoofer volume, front/rear fader and
selection of main or auxiliary inputs
- Gold-plated RCA connectors
to ensure best signal transfer
|
| |
|

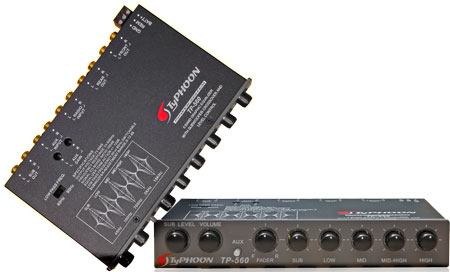

Model |
TP-560 |
|
SPECIFICATIONS
|
|
Graphic Center Frequencies |
SUB 45 Hz |
|
|
LOW 100 Hz |
|
|
MID 700 Hz |
|
|
MID-HIGH 2 KHz |
|
|
HIGH 15 KHz |
|
Boost/Cut |
12 dB |
|
S/N Ratio |
105 dB |
|
Frequency Response |
10 Hz ~ 50 KHz ± 1dB |
|
Maximum Output Voltage |
7 V RMS |
|
THD |
0.005 |
|
Input Sensitivity |
50 mV ~ 3 V RMS |
|
Head Room |
20 dB |
|
Input Impedance |
10 K Ω |
|
Output Impedance |
50 K Ω |
|
Stereo Separation |
82 dB / 1 KHz |
|
Operating Voltage |
11 ~ 15 V Negative Ground |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
