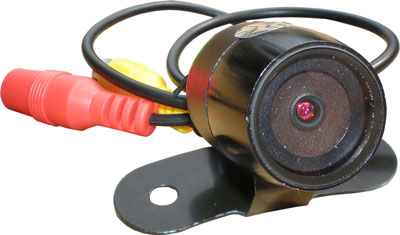

 Reverse Sensor Camera |
|
|
 |
| |
|
FEATURE
|
| |
|
Model |
SSC-500 |
|
SPECIFICATIONS
|
|
Sensor |
0.67" CMOS |
|
Vertical Sync Frequency |
50 Hz/ 60Hz |
|
Scanning System |
2:1 Interlace |
|
Sync.System |
Internal |
|
Resolution |
360 TV lines |
|
Video Output |
1Vp-p 75Ω |
|
S/N Ratio |
>48dB |
|
Current Consumption |
Max 150mA |
|
Power Supply |
DC 10-15V |
|
Operating Temperature |
-20˚C ~ 70˚C |
|
Lens Angle |
157˚ |
|
WaterProof |
IP67-IP68 |
|
Minimum illumination |
3.0 Lux |
|
Dimension |
17mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
