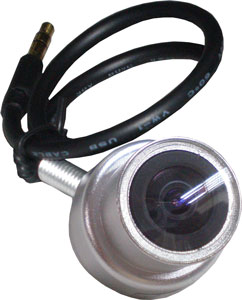

 Reverse Sensor Camera |
|
|
 |
| |
|
FEATURE
- -Water Proof
- -45° Screw Type
- -AUTO WAKE
|
| |
|
Model |
XL-D 23 CM |
|
SPECIFICATIONS
|
|
Sensor |
CMOS |
|
Effective PIxel |
628 x 582 (Pal) 510 x
492(NTSC) |
|
Horizontal Sync Frequency |
15625KHz (PAL) /
15734KHz(NTSC) |
|
Vertical Sync Frequency |
50 Hz/ 60Hz |
|
Scanning System |
2:1 Interlace |
|
Sync.System |
Internal |
|
AGC, BLC, White Balance |
Auto |
|
Resolution |
380 TV lines |
|
Video Output |
1Vp-p 75Ω |
|
S/N Ratio |
>48dB |
|
Current Consumption |
Max 150mA |
|
Power Supply |
DC 12V + 20% |
|
Operating Temperature |
-20˚C ~ 60˚C RH 95%
MAX |
|
Lens Angle |
A 92˚,B 120˚, C 140˚, D 170˚ |
|
WaterProof |
IP67-IP68 |
|
Minimum illumination |
<3.0 |
|
Dimension |
23 mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
