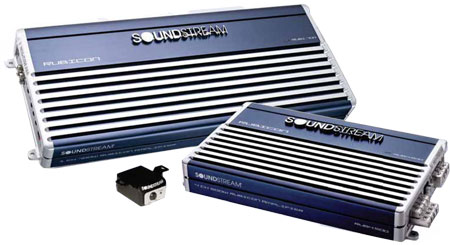

 AMPLIFIER
|
|
|
|
| |
|
Boasting a gorgeous, yet
aggressive, blue hairline finish, there's no mistaking the
fact that RUBICON amplifiers stand for what Soundstream
intended many years ago Strong quality and strong identity
- These bad boys are at the top of their game with the most
modern technology available!
|
|
FEATURE
- Midnight Blue Finish
w/ Brushed Accents
- MOSFET Pulse Width
Modulated Power Supply
- Three-Way Protection
Circuitry (thermal, short, impedance)
- Delayed On/Off
Circuit
- Tri-Mode Capable
- Variable Crossovers
(HPF/Full/LPF/Band)
- Variable Bass Boost
- High Level Input
- Direct Wire 4 ga.
Power, 8 ga. Speaker Terminals
|
| |
|
Model
|
RUB 4.600
|
|
SPECIFICATIONS
|
|
Channels |
4 Ch Class A/B |
| RMS
Power @ 4Ω, 14.4V |
100W x 4
|
|
RMS Power @ 2Ω, 14.4V
|
150W x 4 |
| RMS
Power @ 4Ω Bridged, 14.4V |
300W x 2 |
Total Harmonic Distortion
(4Ω power) |
0.02 % |
| Frequency
Response |
10 Hz ~ 35 KHz |
|
Signal-to-Noise Ratio
(4Ω power) |
105 dB |
| Damping
Factor (100Hz, 4Ω) |
> 250
|
|
Signal Voltage
|
200mV ~ 6 V |
| Fusing
|
(3) 20
|
|
Dimensions:
|
8" W x 15.5" D x2
" H |
| Channels
1&2 HPF (12dB/octave) |
50 ~ 4 KHz
|
|
Channels 1&2 LPF (12dB/octave)
|
50 ~ 4 KHz |
| Channels
3&4 LPF (12dB/octave) |
15 ~ 50 Hz |
|
Channels 3&4 LPF (12dB/octave)
|
50 ~ 800 Hz or 250
~ 4 KHz |
| Bass
Boost |
0,6,12 dB @ 50
Hz |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
