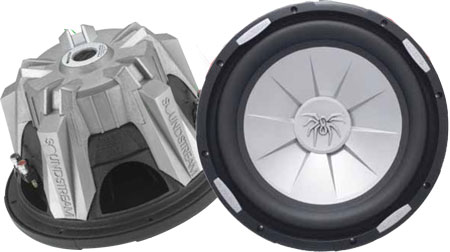

Continuing into 2009 are
the Picasso Subwoofers. These aggressive new subs are engineered
from the ground up. The new motors yield more power handling
than the previous drivers and are specific per size. Past
experience proves that one-size-fitsall motors for 10”-15”
subs does not yield top performance. The drivers feature
polypropylene cones and NBR rubber surrounds for durability.
The PXW subwoofers are available in dual 4-ohm coils or
dual 2-ohm coils for versatility.
|
|
FEATURE
- Dual 2 or Dual
4 Ohm KSV Kapton Voice Coils
- Polypropylene Injection
Molded Cone
- NBR-Rubber Surround
- Nickel Plated 8
ga. Compression Wire Terminal
- Conex/Cotton Composite
Spider
- Texture Coat Finish
on Stamped Steel Basket
- Suspension Integrated
Tinsel Leads
- Vented Back Plate
|
| |
|
Model
|
PXW-10
|
|
SPECIFICATIONS(BASIC)
|
|
RMS Power (Watts) |
350 |
| Efficiency
(1W/1M dB) |
84.19 |
|
Voice Coil Configuration |
2" Dual 4Ω |
| X-max
(mm) |
11.1 |
|
Cone Material
|
Poly |
| Mounting
Depth |
5.75" |
|
Cutout Dimension |
9.25" |
| Optimum
Sealed Enclosure |
1 |
|
Optimum Ported Enclosure |
1.5 |
| Port
Recommendation (Dia x L) |
3" x 12" |
| |
|
|
SPECIFICATIONS(ADVANCE )
|
|
Fs (hz) |
33.53 |
|
Qms |
7.265 |
|
Vas (ft³) |
1.355 |
|
Cms (mm/n) |
0.248 |
|
Mms (g) |
90.8 |
|
Rms (kg/s) |
2.632 |
|
Xmax (mm) |
11.1 |
|
Xmech (mm) |
16.65 |
|
Dia (in²) |
8.069 |
|
Sd (in²) |
52 |
|
Vd (ft³) |
0.019 |
|
Qes |
0.97 |
|
Re (Ohm) |
7.2 |
|
Z (Ohm) |
8 |
|
BL (Gauss) |
11.92 |
|
Pe (watts) |
350 |
|
Qts |
0.856 |
|
NO |
0.144 |
|
1w/1m SPL (dB) |
83.61 |
|
2.8v SPL (dB) |
84.19 |
|
VC Dia. (in) |
2 |
|
Impedance (Ohm) |
DVC 4 |
|
M-vd (ft³) |
0.1 |
|
Measurements (in) |
10 |
|
Overall Dimension |
10.5 |
|
Overall Height |
6.375 |
|
Mounting Depth |
5.75 |
|
Cutout Dimension |
9.25 |
|
Flange Width |
.75. |
|
Flange Height |
0.625 |
|
Weight (lb) |
8.5 |
|
SPECIFICATIONS (SEALED
BOX)
|
|
Min. Sealed (ft³) |
0.75 |
|
Qtc |
1.379 |
|
F3 (Hz) |
41.89 |
|
Opt. Sealed (ft³) |
1.00 |
|
Qtc |
1.253 |
|
F3 (Hz) |
38.62 |
|
Max. Sealed (ft³) |
1.25 |
|
Qtc |
1.174 |
|
F3 (Hz) |
36.69 |
|
SPECIFICATIONS (PORTED BOX)
|
|
Min. Vented (ft³) |
1.25 |
|
Port (dia. x length) |
3x12 |
|
Fb (Hz) |
35.47 |
|
F3 (Hz) |
33.60 |
|
Opt. Vented (ft.3) |
1.50 |
|
Port (dia. x length) |
3x12 |
|
Fb (Hz) |
31.99 |
|
F3 (Hz) |
30.32 |
|
Max. Vented (ft³) |
1.75 |
|
Port (dia. x length) |
3x12 |
|
Fb (Hz) |
29.38 |
|
F3 (Hz) |
27.86 |
|
| |
|
| |
|
|
