 PRE-Amplifier |
|
|
 |
| |
|
5 Band Graphic
Equalizer
|
|
FEATURE
- 5 Band Equalizer with
Subwoofer OUtput
- Pre-Amp Line Driver
- Front/Rear Outputs with
Fader Control
- Subwoofer Frequency
Adjustable 40 Hz ~ 120 Hz
- Separate Subwoofer
Frequency And Level Controls
- Center - Detended Boos /
Cut Controls for Each Band
- RADIO / CD Input Selector
- Gold-plated RCA Input And
Output Connectors
- Independent L&R INput Gain
Adjustments
- Night Illumination Design
|
| |
|

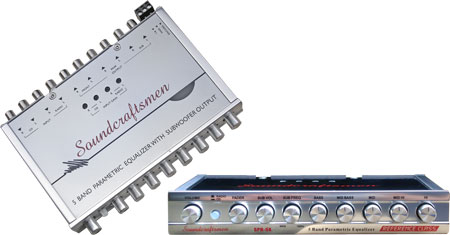

Model |
SPR-5X |
|
SPECIFICATIONS
|
|
Signal To Noise Ratio |
110 dB |
|
Total Harmonic Distortion (1
KHz , 1 VRMS) |
0.03% |
|
Boost / Cut Range |
± 12dB |
|
Equalizer Center Frequencies |
|
|
|
BASS |
55 Hz |
|
|
MID BASS |
250 Hz |
|
|
MID |
500 Hz |
|
|
MID- HI |
2 KHz |
|
|
HI |
10 KHz |
|
Maximum input voltage (FLAT) |
2.0 VRMS |
|
Maximum Output |
7.2 VRMS |
|
Frequency Response |
25 Hz ~ 50 KHz |
|
Supply Voltage |
9~15 VDCC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
