 ACCESSORIES |
|
|
 |
| |
|
FEATURE:
- Flash Disc can be
used as a MP3 Player
|
| |
|

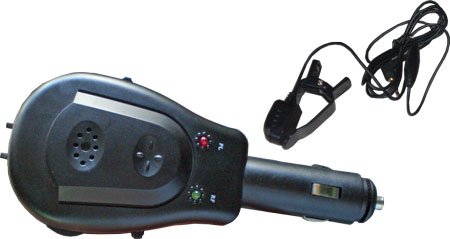

Model |
MP-1688 |
|
SPECIFICATIONS
|
|
Audio Input level |
-10 dBV |
|
Limiter input Level |
-16 ~ -10 dB gain |
|
Audio input frequency band |
20 Hz ~ 15 KHz |
|
Pre-emphasis time constant |
40 ~ 60 µs |
|
Channel Separation |
25 ~ 40 dB |
|
Channel balance |
±2 |
|
T.H.D |
0.3 % |
|
Transmission Output Level |
88 ~ 89.2 MHz + 3dB |
|
Deviation |
-40 |
|
Spurious Level |
75 KHz |
|
Power dissipation |
700 mW |
|
Operation Temperature |
-20 ~ 65°C |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
