 AMPLIFIER |
|
|
Multi Channel Amplifier |
|
|
|
FEATURE
-
4/5-Way Variable
Crossover with RCA outputs
-
QBassTM Bass
Boost
-
Balance Differential
Input Circuit
-
Speaker lead high
level input
-
High Voltage Input
capability
-
Gold Plated RCA,
Speaker & Power Connectors
-
Mixed Mono /Stereo
Operation
|
| |
|

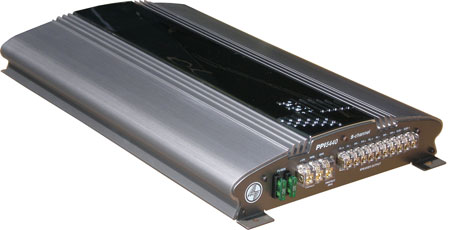

Model |
PPI 5440 |
|
SPECIFICATIONS
|
|
Power Rating 4Ω |
30 W x 4 + 120 W |
|
Power
Rating 2Ω |
60 W x 4 + 200W
|
|
Power
Bridged 4Ω |
120 W x 2 + 120W |
|
Power Bandwidth |
70Hz~80Hz |
|
THD |
0.05% |
|
S/N Ratio |
>105dB |
|
Input Sensitivity |
100mV~12V |
|
Input Impedance |
10K Ω |
|
Load Impedance(Stereo) |
2Ω~8Ω |
|
Load Impedance(Bridge) |
4Ω~8Ω |
|
Supply Voltage |
10V ~15V |
|
Damping Factor |
> 300 |
|
Slew Rate |
> 45V/µS |
|
QBassTM
Equalization |
Up To 12dB Boost@40Hz |
|
Dimension (WxDxH) |
435 x 256 x 62mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| |
|
|
