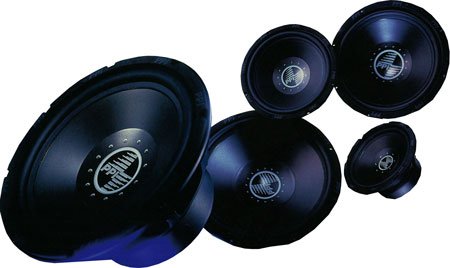

 SUBWOOFER |
|
|
Single Coil
|
| |
|
FEATURE
-
Carbon
fiber cones and titanium tweeters for superior performance.
-
PPI
tweeter is ferrofluid™ cooled and incorporates a composite
surround
for increased control during extreme transient peakes.
-
This
allow for amore natural response curve and realistic
reproduction.
-
The
carbon fiber cone is very lightweight and stiff, which
allows tight,
quick and strong mid bass attack.
|
| |
|
Model
|
PPI 154
|
PPI 158
|
|
SPECIFICATIONS
|
| Woofer
Size |
15" |
15" |
|
Power Handling |
300 Watts |
300 Watts |
| Voice
Coil Former/Type |
4 Layer/Kapton |
4 Layer/Kapton |
|
DC resistance of V.C |
4 Ω |
8 Ω |
| Frequency
Response |
25 Hz ~ 250 Hz |
25 Hz ~ 250 Hz |
|
QTS |
0.5 |
0.52 |
|
FS |
22.67
Hz |
22.67
Hz |
|
VAS |
322.53L |
322.53L |
| XMAX |
7.83mm |
7.83mm |
|
Peaker Excursion |
17.83mm |
17.83mm |
|
Sensitivity |
90.3dB |
90.3dB |
|
Mounting Hole diameter |
13.75" |
13.75" |
| Mounting
Depth |
6.38"
|
6.38"
|
|
Displacement |
0.09 cuft |
0.09 cuft |
| Net
Weight |
10.5 lbs |
10.5 lbs |
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
| |
|
| |
|
|
