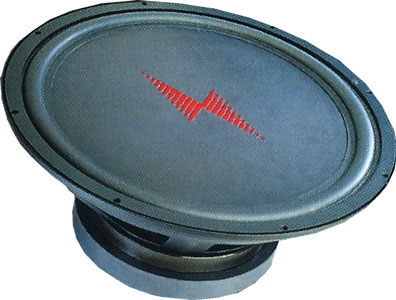

SUBWOOFER |
|
|
|
FEATURE
- E-Glass/Nomex
Honeycomb ACDS extremely rigid diaphragm for more
accurate response
- Long
Field Motor Structure for longer powered excursion.
- Extended
Dual Vented Pole Piece offers better magnetic and thermal
transfer.
- Dual
complementary Spiders and Composite Poly Foam Surround
give
greater linear control over larger excursions
- Ferrofluid
Cooling enhances power handling while increasing mechanical
damping. Foam Padded Lead in Wires eliminate tinsel
lead vibration noise commonly found in other speakers.
|
|
Model
|
PC 154
|
PC 158
|
SPECIFICATIONS
|
SubWoofer
Size |
15" |
15" |
Frequency Response |
25Hz ~ 800 Hz |
25Hz ~ 800 Hz |
Power
Rating |
300Watts
RMS |
300Watts
RMS |
Sensitivity (SPL at
1W) |
91.47 dB |
91.47 dB |
Impedance |
4Ω |
8Ω |
Enclosure |
sealed 1.75 -2.50cubic
feet |
sealed 1.75 -2.50cubic
feet |
Voice
coil type/Former |
Two
Layer /Anodized Aluminum |
Two
Layer /Anodized Aluminum |
Diaphragm Materail |
E-Glass/Nomex Honey
combe |
E-Glass/Nomex Honey
combe |
Basket
Material |
Steel |
Steel |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
