 AMPLIFIER |
|
Multi Channel Amplifier
|
| |
|
FEATURE
-
Fully regulated
design for guaranteed power delivery
-
Flexible TC-X
crossover with configurable line out
-
High-voltage input
capability with selectable 12dB attenuation
-
Mixed mono/stereo
operation
-
2 Ohm stereo stable
-
Q Bass™ Plus
|
| |
|
Model |

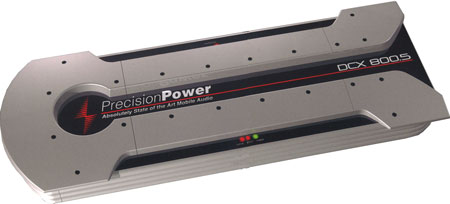

DCX 800.5 |
|
SPECIFICATIONS
|
|
Power Rating 4Ω
|
50 W x 4 + 200W x 1 |
|
Power
Rating 2Ω |
100 W x 4 + 400 W x 1
|
|
Power
Bridged 4Ω |
200 w x 1 + 400 W x 1 |
|
THD +N |
0.08% + 0.1% |
|
S/N Ratio |
> 100dB |
|
Frequency Response |
10 Hz~ 50KHz |
|
Damping Factor |
>300 |
|
X-Over Type, Range, Slope |
2-Way, 30Hz~4KHz,12dB Octave |
|
Fan |
Yes |
|
Q-Bass Level |
Q-Bass Plus/Remote |
|
Dimension (inch) |
28-1/8
10-1/2
2 -3/4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| |
|
|
