 AMPLIFIER |
|
|
4 Channel Amplifier
|
| |
|
FEATURE
-
Fully
regulated design for guaranteed power delivery
-
Flexible
TC-X crossover with configurable line out
-
High-voltage
input capability with selectable 12dB attenuation
-
Mixed
mono/stereo operation
-
2 Ohm
stereo stable
-
Q Bass™
Plus
|
| |
|
Model
|

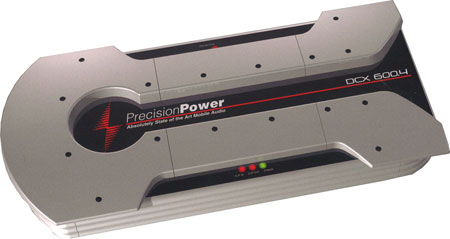

DCX 300.4
|
DCX 600.4
|
DCX 1000.4
|
|
SPECIFICATIONS
|
|
Power Rating 4Ω |
50 W x 4 |
90 W x 4 |
125 W x 4 |
|
Power Rating
2Ω |
75
W x 4 |
150
W x 4 |
250 W x 4 |
|
Power Bridged
4Ω |
150 w x 2 |
300 W x 2 |
500 W x 2 |
| THD
+N |
0.08% |
0.08% |
0.08% |
|
S/N Ratio |
> 90dB |
>88dB |
>80dB |
| Frequency
Response |
10
Hz~ 50KHz |
10
Hz~ 50KHz |
10 Hz~ 50KHz |
|
Damping Factor |
>250 |
>250 |
>300 |
| X-Over
Type, Range, Slope |
2-Way,
30Hz~4KHz
12dB Octave |
2-Way,
30Hz~4KHz
12dB Octave |
2-Way, 30Hz~4KHz
12dB Octave |
|
Fan |
No |
No |
Yes |
| Q-Bass
Level |
Q-Bass
Plus/Remote |
Q-Bass
Plus/Remote |
Q-Bass Plus/Remote |
|
Dimension (inch) |
21-3/4
10-1/2
2 -3/4 |
24-3/4
10-1/2
2 -3/4 |
28-3/8
10-1/2
2 -3/4 |
|
| |
|
| |
|
|
