 AMPLIFIER |
|
|
2 Channel Amplifier
|
| |
|
FEATURE
|
| |
|
Model
|

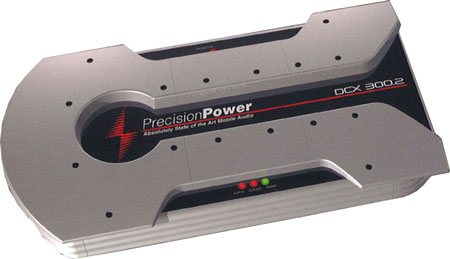

DCX 300.2
|
DCX 500.2
|
|
SPECIFICATIONS
|
| Power
Rating 4Ω |
75 W x 2 |
125 W x 2 |
|
Power Rating
2Ω |
150 W x 2
|
250 W x 2 |
|
Power Bridged
4Ω |
300 w x 1 |
500 W x 1 |
|
THD +N |
0.08% |
0.08% |
| S/N
Ratio |
> 100dB |
>100dB |
|
Frequency Response |
10 Hz~ 50KHz |
10 Hz~ 50KHz |
| Damping
Factor |
>250 |
>300 |
|
X-Over Type, Range,
Slope |
2-Way, 30Hz~4KHz,12dB
Octave |
2-Way, 30Hz~4KHz,12dB
Octave |
| Fan |
No |
Yes |
|
Q-Bass Level |
Q-Bass Plus/Remote |
Q-Bass Plus/Remote |
| Dimension
(inch) |
19-3/8
10-1/2
2 -3/4 |
21-3/4
10-1/2
2 -3/4 |
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
| |
|
| |
|
|
