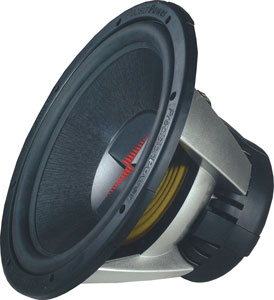

 SUBWOOFER |
|
|
|
| |
|
FEATURE
-
Massive die-cast
basket supports integrated Dual Gap motor assembly
-
Forced Air cooling
via vented spider ring and extended pole piece
-
Ultra-rigid foamed
polypropylene cone and conformally joined Santoprene surround
-
Proprietary Angle
Lock wiring terminals accept heavy gauge cabling
-
Tooled rubber
wrap-gasket for air-tight seal in front or rear mount application
-
Dual 2 /4
Ω
|
| |
|
Model |
DCX 154 |
|
SPECIFICATIONS
|
|
SubWoofer Size |
15" |
|
Power Handling |
1000 W RMS |
|
Impedance |
Dual 4Ω |
|
Frequency Response |
25 Hz ~ 2.5 KHz |
|
Efficiency |
88 dB (1W/1M) |
|
Fs / Hz |
30 |
|
Re |
7.0 |
|
Qts |
0.7 |
|
Vas / Liter / ft3 |
110.3 / 3.89 |
|
X max |
19 mm |
|
Depth |
8 3/4" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| |
|
|
