 SUBWOOFER |
|
|
|
| |
|
FEATURE
-
Massive
die-cast basket supports integrated Dual Gap motor assembly
-
Forced
Air cooling via vented spider ring and extended
pole piece
-
Ultra-rigid
foamed polypropylene cone and conformally joined Santoprene
surround
-
Proprietary
Angle Lock wiring terminals accept heavy gauge cabling
-
Tooled
rubber wrap-gasket for air-tight seal in front or rear
mount application
-
Dual
2 /4 Ω
|
| |
|
Model
|

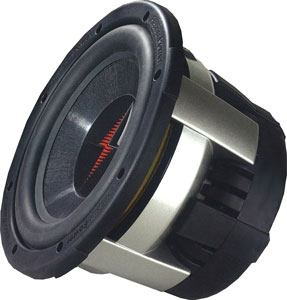

DCX 104
|
|
SPECIFICATIONS
|
|
SubWoofer Size |
10" |
| Power
Handling |
1000 W RMS
|
|
Impedance |
Dual 4Ω |
| Frequency
Response |
40 Hz ~ 2.5 KHz |
|
Efficiency
|
84 dB (1W/1M) |
| Fs
/ Hz |
40 |
|
Re |
7.6 |
| Qts |
0.61 |
|
Vas / Liter / ft3 |
16.8 / 0.59 |
| X
max |
19 mm |
|
Depth |
6 1/2" |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
