 Amplifier |
|
|
 |
| |
|
FEATURE
-
Discrete Mosfet Bi Polar Circuitry
-
Fully
Adjustable 2 Way X-Over
-
Tri-Mode Capable
-
Maxi-Fuse
-
12 dB
Adjustable Bass Eq
-
4-Way
Protection
-
Chrome
Plated Chassis & Back Lit G&S Logo
|
| |
|
Model |

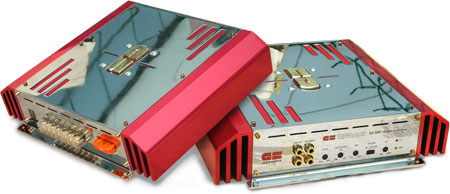

GS-300S |
SPECIFICATIONS |
|
Output Power Rating |
150 Watts x 2 Channel @ 4Ω |
|
|
200 Watts x 2 Channel @ 2Ω |
|
|
400 Watts x 1 Channel @ 4Ω |
|
Power Supply |
PWM |
|
Output Power Circuit
Configuration |
MOSFET |
|
Frequency Response |
-3dB 10 Hz ~ 40 KHz |
|
Damping Factor |
> 180 |
|
S/N Ratio (A-Weighted) |
> 90 dB |
|
THD |
< 0.04% |
|
Channel Separation |
> 70 dB |
|
Input Gain Control |
200mV ~ 4.0 V |
|
Input Impedance |
47 K Ω |
|
Crossover S/W for 1+2 Channel |
HI / FULL / LOW |
|
Variable Hi-Pass |
75 Hz ~ 750 Hz |
|
Variable Low-Pass |
40 Hz ~ 300 Hz |
|
Bass Boost at 42 Hz |
0dB ~ 12 dB |
|
Crossover (CH3 & 4) |
HI / FULL / LOW |
|
Variable Hi-Pass |
75 Hz ~ 750 Hz |
|
Variable Low-Pass |
40 Hz ~ 300 Hz |
|
Bass Boost at 42 Hz |
0 dB ~ 12 dB |
|
Line Out |
Yes |
|
|
|
|
| |
|
| |
|
|
