 Amplifier |
|
|
|
| |
|
FEATURE
- Discrete
Mosfet Bi Polar Circuitry
- Fully
Adjustable 2 Way X-Over
- Tri-Mode
Capable
- Maxi-Fuse
- 12
dB Adjustable Bass Eq
- 4-Way
Protection
- Chrome
Plated Chassis & Back Lit G&S Logo
|
| |
|
Model
|

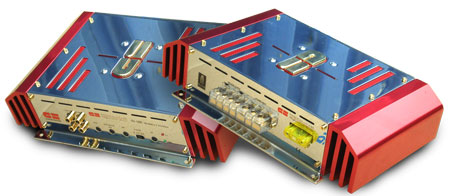

GS-150S
|
|
SPECIFICATIONS
|
| Output
Power Rating |
75
Watts x 2 Channel @ 2Ω |
|
|
100 Watts x 2 Channel
@ 2Ω |
| |
200
Watts x 1 Channel @ 1Ω |
|
Frequency Response
|
-3dB 10 Hz ~ 40 KHz |
| Damping
Factor |
>
180 |
|
S/N Ratio (A-Weighted) |
> 90 dB |
| THD |
<
0.04% |
|
Channel Separation |
> 70 dB |
| Input
Gain Control |
200mV
~ 6.0 V Adjustable |
|
Input Impedance |
47 K Ω |
| Crossover
S/W for 1+2 Channel |
HI
/ FULL / LOW |
|
Variable Hi-Pass
|
75 Hz ~ 750 Hz |
| Variable
Low-Pass |
40
Hz ~ 300 Hz |
|
Bass Boost at 42 Hz |
0dB ~ 12 dB |
| Line
Out |
Full |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
