 COMPONENT SPEAKER |
|
|
 |
| |
|
FEATURE
- Titanium Magnesium
Alloy Cone - Ultra light and stiff for fast, flat
response.
- Die-cast Alloy
Chassis - Shallow design allows "stealth" installs.
- Butyl Rubber
Surround - Highly durable and compliant.
- Flat Progressive
Spider with woven tinsel leads - Excellent dynamic
linearity with ultimate longevity.
- Intercooled Motor
design - Forced cool air system surrounds the Voice
Coil.
- Machined Solid
Brass Terminals - Nickel-plated. Setscrew locking.
Audiophile. (up to 12g wire)
- Competition Grade
Crossover - Audiophile components and topology with
rear Acoustic Fill output
|
| |
|
MODEL |

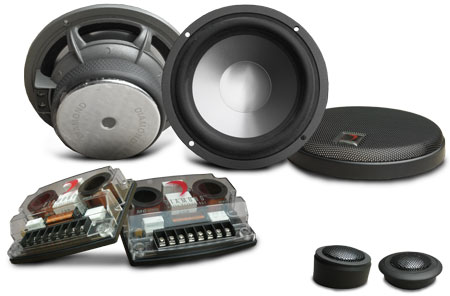

M651 |
SPECIFICATIONS |
|
Driver |
5¼" Midbass |
|
|
1" Tweeter |
|
Power Handling |
20~150 Watt |
|
Impedance |
4 Ω |
|
Freq. Response |
58Hz~ 24KHz |
|
Sensitivity(2.83v 1m) |
91 dB |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| |
|
|
