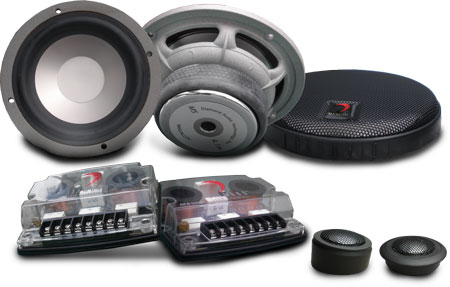

 COMPONENT SPEAKER |
|
|
 |
| |
|
FEATURE
- Mag-Alloy Cone-Ultra
light and stiff for fas, flat response.
- Die-cast Alloy
Chassis - Shallow design allows "stealth" installs.
- Butyl Rubber
Surround- Highly durable and compliant.
- Flat progressive
Spider - Excellent dynamic linearity.
- Intercooled Motor
Design - Forced cool air system surrounds the Voice
Coil.
- Machined Solid
Brass Terminals - Nickel-plated. Setscrew locking.
Audiophile up to 12g Wire
- Aluminum Dome 1"
Neodymium Tweeters - With ferrofluid colling.
- Competition Grade
Crossover - Audiophile Components and topology with
Rear Acoustic Fill output
|
| |
|
Model |
M541 |
SPECIFICATIONS |
|
Driver |
4" Midbass |
|
|
1" Tweeter |
|
Power Handling |
20~100 Watt |
|
Impedance |
4 Ω |
|
Freq. Response |
80~24KKHz |
|
Sensitivity(2.83v 1m) |
89.5 dB |
|
Re (Ω) |
3.3 |
|
Fs (Hz) |
75 |
|
Qms |
3.0 |
|
Qes |
.52 |
|
Qts |
.44 |
|
Vas (L) |
4.5 |
|
Le (mH) |
.42 |
|
BL (T-M) |
4.3 |
|
Xmax |
3.2 |
|
NO (%) |
.37 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| |
|
|
