 Coaxial Speaker |
|
|

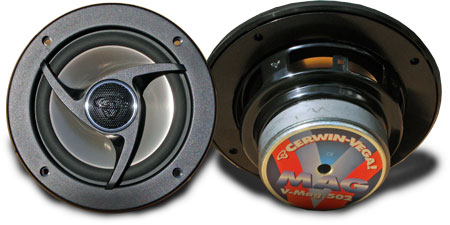

5¼" UNIFIED COMPONENT MOBILE
AUDIO SPEAKER |
| |
|
FEATURE
- High Power handling and
high efficiency
- Magnesium alloy cone; low
mass for excellent transient response
- 3/4" magnesium composite
dome tweeter
- UV resistant butyl rubber
surrounds for outstanding linearity and product durability even
in direct sunlight
- Unified component
point-source design for accurate imaging
- Ergonomic,
industry-standard configurations for easy drop-in installation
into factory openings
|
| |
|
Model |
VMAG 502 |
SPECIFICATIONS |
|
Frequency Response |
30 Hz ~ 22 KHz |
|
Power Handling |
150 Watts (Max Music) |
|
|
100 Watts (Maximum) |
|
|
50 Watts (RMS) |
|
Sensitivity |
90 dB |
|
Nominal Impedance |
4 Ω |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
