Amplifier |
|

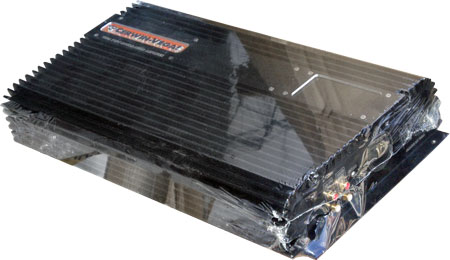

![](vega7000.jpg) |
|
FEATURE
- VEGA BASS dynamic power
bass enhancement circuitry provides up to +3 dB
of dynamic power
and up to +10 dB of bass boost with 20 Hz subsonic filtering and
"soft-clip" dynamic limiting.
- Remote digital level
control provides shift "on the fly" amplifier level-control
right from the cockpit of the vehicle through a conventional
four-wire
telephone cable.
- On-board
continuously-variable active crossover designed with selectable
12 dB/ Oct (24 dB / oct. in low-pass bridged mode) slopes and
choice of butterworth high pass, low pass or bandpass filter for
the ultimate in system building flexibility.
- Filter-confirgured
low-level RCA outputs can be set for full range or filtered
operation and independently configured for multi-amplifier
applications
- Output level monitor
provides real time feedback fro low distortion system balance
optimization
- Use of high-current bipolar
transistors in output circuits for outstanding
damping control
and pure signal reproduction.
- An isolated bipolar
regulated power supply supplies separate power for
low-level
preamp. signals to prevent overload distortion and improve S/N
performance
|
|
Model |
VEGA 7000 |
SPECIFICATIONS |
Number of channels |
2 |
Rated power (20 ~ 20 KHz
W/ < 0.05% THD +N)
4 Ω per channel, all channels driven |
175 W x 2 |
Rated power (20 ~ 20 KHz
W/ < 0.05% THD +N)
2 Ω per channel, all channels driven
4 Ω bridged mono |
350 W x 2
700 W x 1 |
Signal To Noise Ratio (A
weighted) |
> 100 dB |
Damping Factor |
> 500 |
Input sensitivity |
0.200 ~ 5 Vrms |
Input impedance |
> 10K Ω |
Vega Bass |
Yes |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
