 SUBWOOFER |
|
|
Dual Coil |
| |
|
FEATURE
- A Reincarnation of
the legendary Stroker Woofer
- Adjustable Voice
Coil Bias System
- Integrated Voice
Coil Heat Sinking and Flux Modulation Ring
- Dual Gap Motor
System
- Field Replaceable
Cone/ Coil Assembly
- Enhanced Piston
Area/ Frame Design
- Spider Clamping
Ring with Integrated Terminals
- Extremely high
excursion and SPL Capability
|
| |
|
Model |

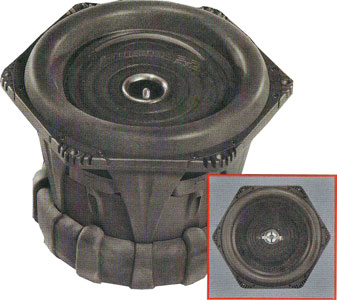

STROKERPRO 12 |
SPECIFICATIONS |
|
Woofer |
12" |
|
Frequency Response |
20 ~ 300 Hz |
|
Power Handling RMS |
2500 Watts |
|
Sensitivity |
82 dB |
|
Nominal Impedance |
Dual 2 Ω |
|
Voice Coil Diameter |
4" |
|
Mounting Diameter |
11" (27.94cm) |
|
Depth |
9" (22.86 cm) |
|
Speaker Displacement |
0.35 ft³ / 9.9 liters |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| |
|
|
