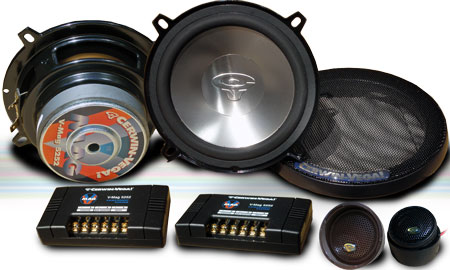

 Component Speaker |
|
|
 |
| |
|
FEATURE
- High power handling
- Magnesium alloy mid-woofer
cone for excellent transient response
- 3/4" Silk dome tweeter
- High-energy neodymium
tweeter magnet for high efficiency in a compact package
- 12 dB per-octave
linear-phase crossovers
- Mid-woofer response down to
50 Hz (±3dB)
- UV-resistant microcellular
rubber surrounds for outstanding product drability
- Tweeter swivel flush-mount,
swivel surface-mount and angled surface mount kits
- PTC tweeter protection
|
| |
|
Model |
V-MAG 5252 |
SPECIFICATIONS |
|
Frequency Response |
30 Hz ~ 22 KHz |
|
(±3 dB) |
55 Hz ~ 20 KHz |
|
Power handling |
|
|
|
Maximum Music |
150 Watts |
|
|
Maximum |
100 Watts |
|
|
RMS |
50 Watts |
|
Sensitivity |
90 dB |
|
Impedance |
4 Ω |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
