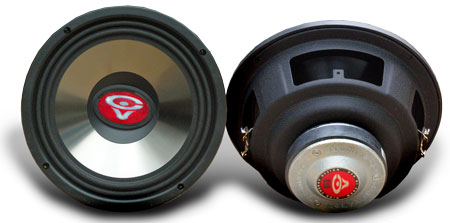

 SUBWOOFER |
|
|
 |
| |
|
FEATURES:
- VEGA-flex Suspension:
Outstanding linearity under hard drive / high power
applications; long throw with minimum lateral cone "drift";
resists ultraviolet radiation. High power handling with low
distortion; extended low bass output.
- High Energy Strontium
Ferrite Magnet and Handwound Voice Coil: 7lb motor
assemblies coupled with 2" precision hand-wound voice coils.
Provides high efficiency and greater control for fast
transient response and sonic accuracy.
- Titanium Nickel Alloy
Vapor-deposition Polypropylene injection-molded Pearl-mica
cone: Uniform cone thickness; proprietary ribbing pattern
for rigidity. Deep powerful bass and smooth response;
detailed percussive attach; low distortion under extreme
loading conditions.
- High Temperature Kapton
Voice Coil Former: Increased magnetic efficiency; excellent
heat dissipation for high thermal power handling
- Available with Single
or Dual Voice Coils: Permits variety of wiring and impedance
options. Flexible for various applications.
|
| |
|
Model |
HED 12 DVC |
SPECIFICATIONS |
|
Woofer Size |
12" |
|
No Voice Coil |
2 |
|
Frequency Response |
20 Hz ~ 500 Hz |
|
Power Handling |
|
|
|
RMS |
200 watts |
|
|
Maximum |
400 watts |
|
Sensitivity (2.8 V / 1m) |
90 dB |
|
Impedance |
4 Ω each coil |
|
Mounting Diameter |
11" (280 mm) |
|
Depth |
5 5/16" (135 mm) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
