 SUBWOOFER |
|
|
 |
| |
|
FEATURE
-
200 Watts RMS
Power Handling
-
High
Temperature Voice Coil
-
High Energy
Strontium Ferrite Magnet
-
Forced Air
Convection Cooling
-
Progressive
Rate, Flat Spider
-
Dual Voice Coil
|
| |
|
Model |

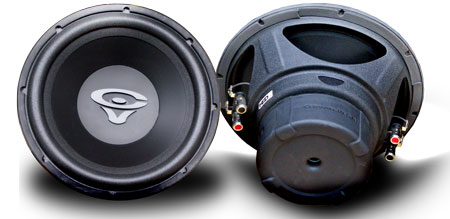

HED 10.4 |
SPECIFICATIONS |
|
Woofer Size |
10" |
|
No of Coils |
2 |
|
Sensitivity (2.8V @ 1 m) |
89 dB |
|
Power Handling RMS |
200 Watts |
|
Nominal Impedance |
4 Ω |
|
Voice Coil Dia. |
1 ½" |
|
Mounting Dia. |
9" / 228mm |
|
Mounting Depth |
5 5/8" / 143 mm |
|
Spkr. Displacement |
0.059 ft³ / 1.7 litres |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
