 Amplifier |
|
|
 |
| |
|
FEATURE
- Advanced circuit design
features bridgeable and mixed mode operation for use in a
variety of 4,3,2 channel systems
- Independent front and rear,
low-pass/high-pass electronic crossover each with a 12 dB per
octave slope and full adjustment range (55Hz ~ 550Hz front and
55Hz ~ 5.5 KHz rear) to aid in audio system design
- Variable bass boost circuit
to reinforce low frequency signals that may be lost due to
subwoofer box design
- Adjustable input level
controls with ground loop isolation accepting a wide range of
input signals
- Remote turn-on with "soft
start" muting to prevent turn-on "thump"
- Pulse-width Modulated (PWM)
MOSFET power supply with low AM RFI and protection circuits for
overheating and speaker shorts
- 2 Ω load capacity to drive
a variety of speaker systems
- Nickel-plated input/output
connectors and an external automotive type fuse
|
| |
|

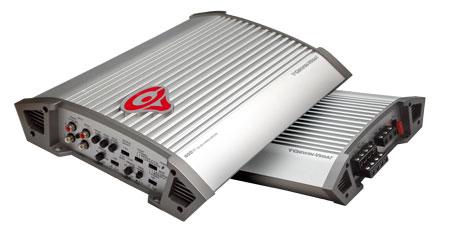

Model |
EXL 400.4 |
SPECIFICATIONS |
|
Frequency Response |
20 Hz ~ 20 KHz |
|
Signal Noise Ratio |
> 95 dB |
|
T.H.D |
0.05 % all channels driven |
|
Input sensitivity low level |
250mV ~ 2.5 V |
|
4 Ω 4 Channel output |
60W x 4 @ 0.08% THD |
|
2 Ω 4 Channel output |
100 W x 4 @ 0.08% THD |
|
Bridged stereo output |
200 x 2 @ 0.08% THD |
|
Current con. @ Max
Power Output |
46A @ 400 Watts |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
