 Amplifier |
|
|
 |
| |
|
FEATURE
- Advanced circuit design
features bridgeable and mixed mode operation for use in various
systems, Including those with satellite speaker and / or
subwoofers
- Variable high-pass/low-pass
electronic crossover with a selectable 12 or 24 dB per octave
slope and full adjustable range (from 50Hz ~5.5KHz) to aid in
audio system design
- Variable bass boost circuit
to reinforce low frequency signals that may be lost due to
subwoofer box design
- Adjustable input level
controls with ground loop iolation accepting a wide range of
input signals
- Remote turn-on with "soft
start" muting to prevent turn-on "thump"
- Pulse-width modulated
(PWM) MOSFET power supply with low AM RFI and protection
circuits for overheating and speaker shorts
- 2-Ω load capability to
drive a variety of speaker systems
- Nickel-plated input/output
connectors and an external automotive type fuse
- Power save lowers the
current drawn when systems volume is reduced
|
| |
|
Model |

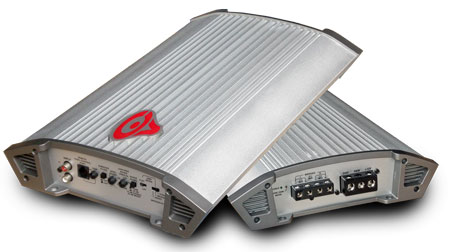

EXL 1000 D |
SPECIFICATIONS |
|
Frequency Response |
20 Hz ~ 20 KHz ± 1dB |
|
Signal Noise Ratio |
> 90 dB (20 Hz ~ 20 KHz) |
|
T.H.D |
0.05% all channels driven @ 1
KHz |
|
Input Sensitivity low level |
250mV ~ 2.4V |
|
Cont. Power Output |
250 W x 2 @ 0.05% THD, 2Ω load |
|
2-Ω Stereo output |
250 W x 2 @ 0.05% THD |
|
Bridged Power |
1000 W x 1 @ 0.1% THD , 2Ω
load |
|
Current consumption at output
@ max power |
90A @ 1000 Watts |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
