 PRE-AMPLIFIER |
|
|
 |
| |
|
FEATURE:

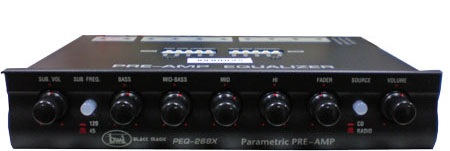

- 4 Band Car Parmetric Equalizer With Crossover Subwoofer Output
|
| |
|
Model |
PEQ 268X |
SPECIFICATIONS |
|
Paramatic Equalizer Range |
± 15dB |
|
S/N Ratio |
80 dB Ref 1 V Input |
|
Frequency Response |
10 Hz ~ 150 KHz ± 1dB |
|
Maximum Output Voltage |
7 V RMS |
|
THD |
0.05 % |
|
Input Impedance |
20 K Ω |
|
Stereo Separation |
80 dB / 1 KHz |
|
Boost Cut |
18 dB |
|
Operation Voltage |
11 - 15 V Negative Ground |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
