 CROSSOVER |
|
|
2 Or 3 Way Electronics Passive Crossover
|
| |
|
FEATURE:
|
| |
|

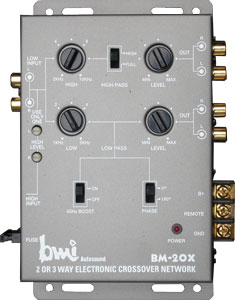

Model |
BM-20X |
SPECIFICATIONS |
|
Frequency Range |
25 ~ 25 KHz, -3 dB |
|
Input Sensitivity |
Radio 2.5 V |
|
|
Line 250 mV |
|
Input Impedance |
Radio 100 Ω |
|
|
Line > 10 KHz |
|
Output Impedance |
< 1 KΩ |
|
Crossover Frequencies |
LOW 1-5 KHz, 12 dB/Oct |
|
|
HIGH 2~10 KHz, 12 dB/Oct |
|
Bass Boost |
+12 dB / 45 Hz |
|
S/N Ratio |
100 dB |
|
THD |
0.01% |
|
Power Supply |
11-16 VDC, Chassis Minus |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| |
|
|
