 AMPLIFIER |
|
|
|
FEATURE
- Full MOSFET Circuitry
- Fully Adjustable X/Over
- Regulated Power Supply
- High Current Amps
- True 1Ω
Stability 0~ 18 dB Variable Bass Boost @ 43Hz
- Adjustable Line Outputs
Thermal-Col Heat Sink Design
- 4-AWG Molded
Terminals Chrome-Finish Heatsink
- Chromed Front & End
Panels
- Maxi Fuse
|
| |
|

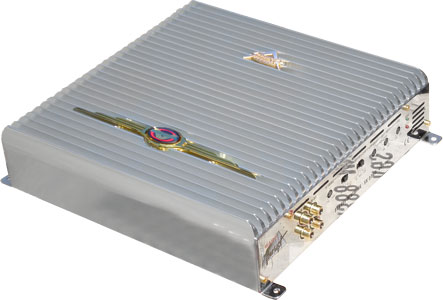

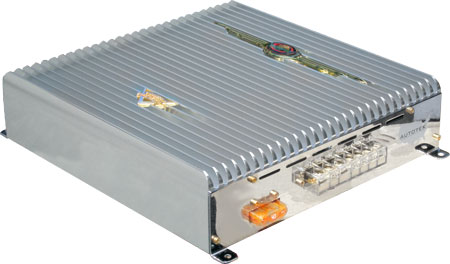

Model |
SX 2200 |
|
Specification |
|
4 Ω 1 KHz RMS |
125 W x 2 |
|
4 Ω Bridged RMS |
400 W x 1 |
|
Signal To Noise Ratio |
> 90 dB |
|
Frequency Response |
10 Hz ~ 40 KHz ± 1dB |
|
Crossover |
Separated Variable Hi Pass &
Low Pass |
|
High Pass |
75 Hz ~ 750 Hz |
|
Low Pass |
40 Hz ~ 150 Hz |
|
Slope |
12 dB Octave |
|
Bass Thrust at 42 Hz |
0 dB ~ 18 dB |
|
Input Sensitivity |
0.2 V ~ 4.0V |
|
Low level input Impedance |
22 K Ω |
|
Damping Factor |
180 into 4 Ω |
|
Channel Separation |
> 70 dB |
Power Supply Consumption
(Bridge RMS) |
38A |
|
Fuse Rating |
20 A x 2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
