 AMPLIFIER |
|
|
| |
|
FEATURE
- Bipolar Output
Circuitry
- Full Range Option
- Multi-Channel Operatoin
- 4-AWG Molded Terminals
- 0-18 dB Adj. Bass Boost
- On Board Thermal
Regulation
- 3-Way Protection
- Patented Design
- Thermal Vent Cooling
Heat Sink
- 225 Watt x @ 4
Ω
- 275 Watt x 2 @ 2Ω
- 550 Watt @ 4
ΩMono
|
| |
|

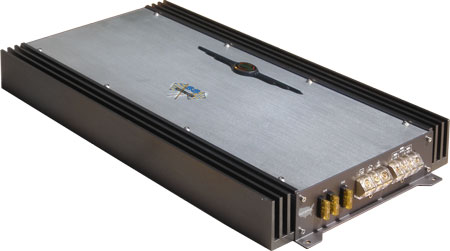

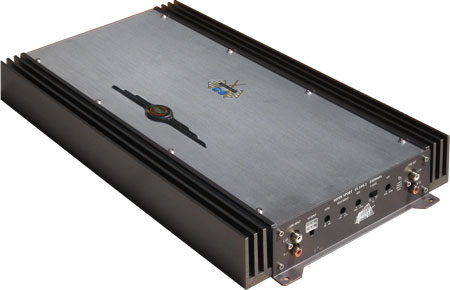

Model |
SS 590.2 |
|
Specification |
|
Power Output @ 4 Ω |
225 W x 2 CH |
|
Power Output @ 2 Ω |
275 W x 2 CH |
|
Bridged Power @ 4 Ω |
550 W |
|
Signal / Noise Ratio |
> 90 dB |
|
Channel Separation |
> 55 dB |
|
Frequency Response ± 1.0 dB |
10 Hz ~ 30 KHz |
|
HPF |
40 Hz ~ 250 Hz |
|
LPF |
40 Hz ~ 250 Hz |
|
Adjustable Sensitivity |
0.25 ~ 6 V |
|
Input Impedance Low Level |
10 K Ω |
|
Fuse |
20A x 3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
