 AMPLIFIER |
|
|
| |
|
FEATURE
- 2 Channel Amplifier
- Full MOSFET Circuitry
- Fully Adjustable 2-Way/Over w/full range option
- Multi-Channel Operation
- 4-AWG Molded
Terminals
- 0~12 dB Adj. Bass Boost
- On Board Thermal
Regulation
- 3 Way Protection
- Patented Chrome Plated
- Thermal Vent Cooling
Heat Sink
|
| |
|

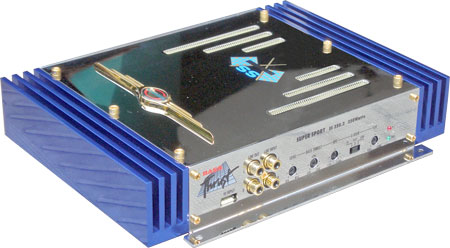

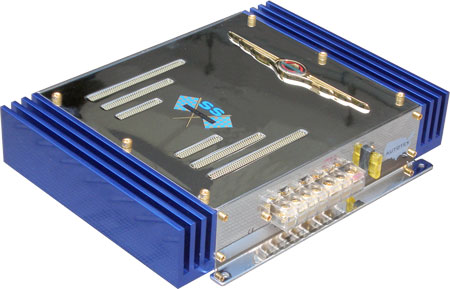

Model |
SS 350.2 |
|
Specification |
|
Audio Power
Output per Channel @ |
14.4VDC |
|
4 Ω 1 KHz RMS |
125 W x 2 CH |
|
4 Ω Bridged RMS |
350 W x 1 CH |
|
Signal To Noise Ratio |
>90dB |
|
Frequency Response |
10 Hz ~ 40 KHz ± 1dB |
|
Crossover |
Separated Variable Hi Pass
and Low Pass |
|
|
High Pass |
75 Hz ~ 750 Hz |
|
|
Low Pass |
40 Hz ~ 300 Hz |
|
|
Slope |
12 dB Octave |
|
|
Bass Thrust at 42 Hz |
0 dB ~ 12 dB |
|
Input Sensitivity |
0.2 V ~ 4.0V |
|
Low level input impedance |
22 K Ω |
|
Damping Factor |
180 into 4Ω |
|
Channel Separation |
>70 dB |
Power Supply Consumption
(Bridge RMS) |
18A |
|
Fuse Ratin |
20A |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
