 AMPLIFIER |
|
|
2 Channel
Amplifier
|
| |
FEATURE
- SEPP A/B-Class Super
Sport Amplifier Designs
- Bridgeable Designs: ALL
2-CH & 4 CH
- Illuminated, Large New
Design Autotek Logo
- Super Sport ASPS MOSFET
PWM Power Supply For Instant Maxx
Current Output
- 1-Ω
Capable A/B Class Mono Block Amps
- 2-Ω
Capable A/B Class 2/4
CH Amps
- 4-Ch Amps Config to
3-Ch R & L and Sub Mode
- Rugged PRO-FI™ MOSFET
Audio Outputs
- Super Sport AMP
Protection with System Diagnostics LEDs that
Guard Against :
- Current / Amperage
Overload
- Short Circuits
- Thermal Overload
- DC offset
- Silver Preamp Level RCA
Inputs
- Daisy Chain Line
Outputs
- Mono Blocks Include a
Remote Bass Control
- Pro-Fi™ Sound Shaping
Controls
- Mono / Stereo Switch
- HP/LP Full-pass Freq,
Selections
- Crossover Frequency
Adjustments(60 Hz~1.2 KHz for all
multi-channel amps) (30 Hz
~250 Hz Low-pass)
Except SS 750.1, SS 500.1
- 4-CH
Amps Include Separate F & R Bass EQ
controls Adjustable
+12 dB
Bass EQ @ 45 Hz
- Input Level control
(0.2 V~5V for all 2/4 Ch Amps or 6V for Super Sport
Mono-Blocks Amps)
- Oversized Speaker
Terminals
|
| |
|

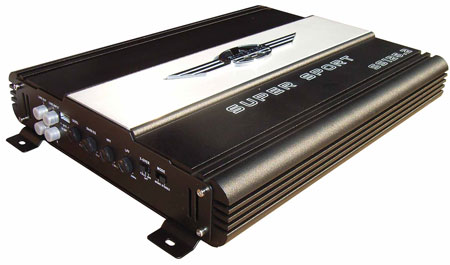

Model |
SS 125.2 |
|
Specification |
|
Type |
350 W 1/2 Channel A/B Class |
|
Power |
350 W rms x 1 CH @ 4 Ω |
|
|
175 W rms x 2 CH @ 2 Ω |
|
|
125 W rms x 2 CH @ 4 Ω |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
