 SUBWOOFER |
|
|
 |
| |
|
FEATURE
-
40mm High
Density Foam Surround
-
2" Peak to Peak
Excursion
-
4 Layer 2" Dual
4 Ω
Kapton Voice Coil
-
Dual Stacked 30
Oz Magnet
-
Double Spiders
-
Gold Plated
Push Terminals
-
New ADT cone
-
Wrinkle Painted
Steel Basket
-
400 Watt Power
Handling
|
|
|
Model |

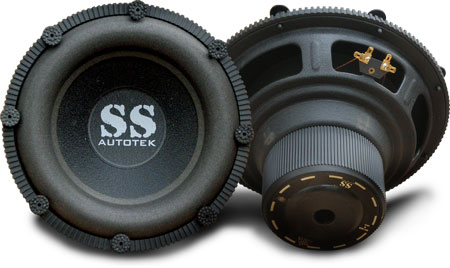

SS 104 |
|
Specification |
|
Woofer Size |
10" |
|
FS Hz |
33.7 |
|
Re Ω |
3.0 |
|
Qms |
6.8 |
|
Xmax mm |
7.0 |
|
Qes |
0.54 |
|
Qts |
0.50 |
|
Cms |
0.25 |
|
Mms/gr |
88.8 |
|
Sens. dB (1w/1m) |
86.3 |
|
Vas L Cu.ft. |
1.35 |
|
Le mH |
1.6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
