 AMPLIFIER |
|
|

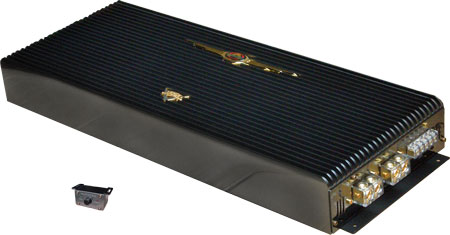

Mono Block Amplifier
|
| |
FEATURE
- New Class X Di2gital
Mono Switching Amplifiers w/DA output filter
- 0~18 dB Variable Bass
EQ
- Fully Adjustable
Crossover 35 Hz ~ 250 Hz
- 24 dB Slope
- Line Outputs
- Subsonic Filter 20 ~ 50
Hz
- 4 AWG Molded Connects
- Maxi fuse
- Phone jacks for Remote
Control Operation
- Adjustable Band pass
X/Over Function
- 24 dB Slope Subsonic
Filter
|
| |
|
Model |
MX 5000 |
|
Specification |
|
Audio Power at |
14.4 VCD |
|
Power Rating into 4 Ω |
500 W x 2 CH |
|
Power Rating into 2 Ω |
750 W x 2 CH |
|
Power Rating into 1 Ω |
1200 W x 2 CH |
|
Power Rating into 2 Ω Bridged |
2400 W x 1 CH |
|
Signal To Noise Ratio |
> 90 dB |
|
Frequency Response |
10 Hz ~ 400 Hz ± 3dB |
|
Crossover |
|
|
Low Pass at 24 dB Octave |
35 Hz ~ 250 Hz |
|
|
Subsonic Filter at 24 dB
Octave |
10 Hz ~ 50 Hz |
|
|
Bass EQ at 45 Hz |
0 db ~ 18 dB |
|
Input Sensitivity |
150 mV ~ 7 V |
|
Damping Factor |
200 into 4 Ω |
|
Power Supply Consumption |
140 A |
|
| |
