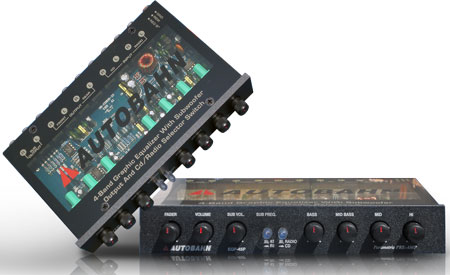

 PRE-Amplifier |
|
 4- Band Graphic
equalizer with subwoofer output and CD/RADIO selector switch |
| |
|
FEATURE
- Using bipolar power supply
- Master volume control
- Input sensitivity control
- Subwoofer output and frequency selectors
- CD/RADIO input selectors
- Auto sensing
|
| |
|
Model |
EQP 45P |
SPECIFICATIONS |
| Power Supply |
11-15V
DC Neg. Ground |
| Max. Output Voltage |
7 Volts
RMS |
| Pre Graphic Frequency |
40 Hz,
200 Hz, 2 KHz, 20 KHz |
| Equalization Range |
± 12 dB |
| Subwoofer Frequency |
43/60 Hz |
| Input Impedance |
15 KΩ |
| S/N Ratio |
80 dB
REF 1 V Input |
| T.H.D |
0.05% |
| Channel Separation |
70 dB |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
