 CROSSOVER |
|
|
|
| |
|
FEATURE
- High Definition Subwoofer Controller
- Subwoofer ON/Off Switch
- Adjustable Subwoofer Frequency Control
- Gain Control
|
| |
|
Model
|

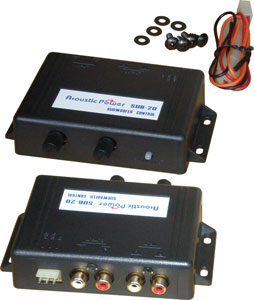

SUB 20
|
|
SPECIFICATIONS
|
| Power
Supply |
11~15V
DC Neg. Ground |
|
Max output |
7V rms |
| S/N Ratio |
80
dB at Max ouput |
|
Crossover Slope Rate |
12 dB / Oct |
| Subwoofer Freq.
Range |
40
Hz ~ 160 Hz |
|
Dimension |
104mm x 27mm x 70mm |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
