 PRE-AMPLIFIER |
|
|
 4 BAND GRAPHIC
EQUALIZER
|
| |
|
FEATURE
- Using Bipolar power
supply
- Master Volume control
- Input Sensitivity
control
- Subwoofer output and
frequency selectors
- CD/RADIO Input
selectors
- Auto Sensing
|
| |
|

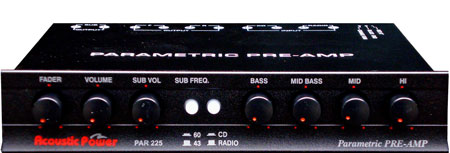

Model |
PAR 225 |
SPECIFICATIONS |
|
Power Supply |
11-15V DC |
|
Max Output Voltage |
7 V RMS |
|
Pre-Graphic
Frequency |
40 Hz, 200 Hz,
2 KHz, 20 KHz |
|
Equalization Range |
± 12 dB |
|
Subwoofer Frequency |
43 / 60 Hz |
|
Input Impedance |
15K Ω |
|
S/N Ratio |
80 db Ref 1 V Input |
|
T.H.D |
0.05% |
|
Channel Separation |
70 dB |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
